Delta-i

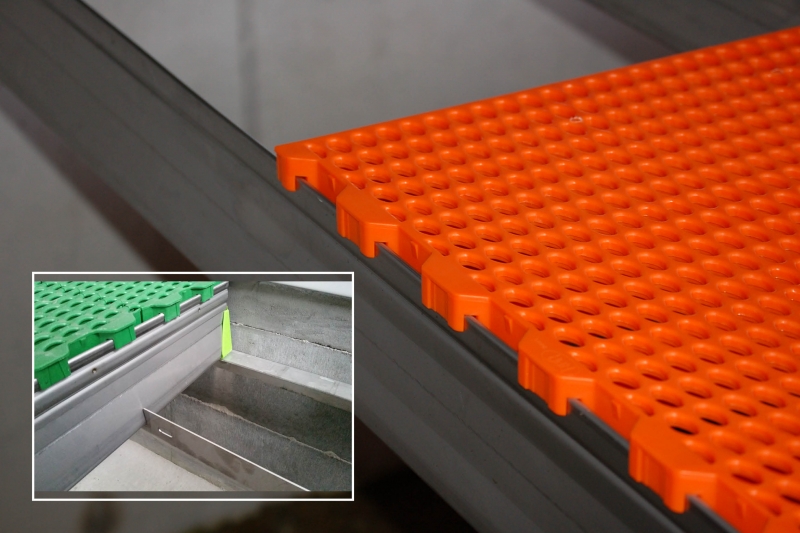

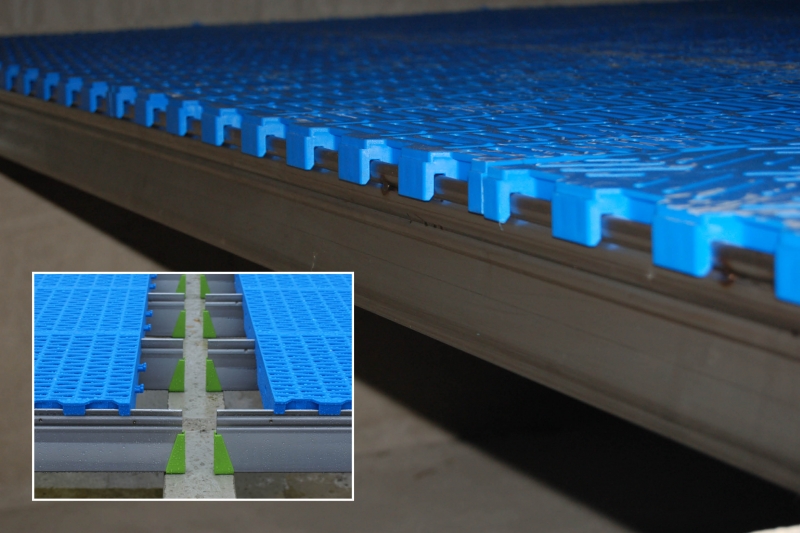

Delta-i is an indestructible, lightweight, stainless steel beam for slats in farrowing and piglet pens.
The Delta-i is a special shaped stainless steel profile. The sophisticated design and construction allows a large cantilevered (non-supported) span.
Delta-i is available in three heights and several thicknesses depending on the span required.
|
Delta-i |
Maximum length in mm | ||
|---|---|---|---|
| Height in mm | Thickness in mm |
Weaners slats max 600mm |
Farrowing |
| 80 | 0,8 | 1600 | --- |
| 80 | 1,0 | 2000 | 1500 |
| 80 | 1,2 | 2400 | 2000 |
| 80 | 1,5 | 2800 | 2500 |
| 100 | 0,8 | 2000 | 1600 |
| 100 | 1,0 | 2500 | 2000 |
| 100 | 1,2 | 3000 | 2500 |
| 100 | 1,5 | 3250 | 2750 |
| 120 | 0,8 | 2500 | 2000 |
| 120 | 1,0 | 3000 | 2600 |
| 120 | 1,2 | 3500 | 3000 |
| 120 | 1,5 | 3750 | 3250 |
Great benefits of Delta-i:
- Indestructible
- Produced to order at the correct length
- Install without fixings
- Residual value
- Produced in the Netherlands
For easy and fast mounting various mounting brackets are available (see products). These will ensure that Delta-i always remains in place without fixings.
For questions, more information and a good advice for your grid flooring, do not hesitate to contact us.
